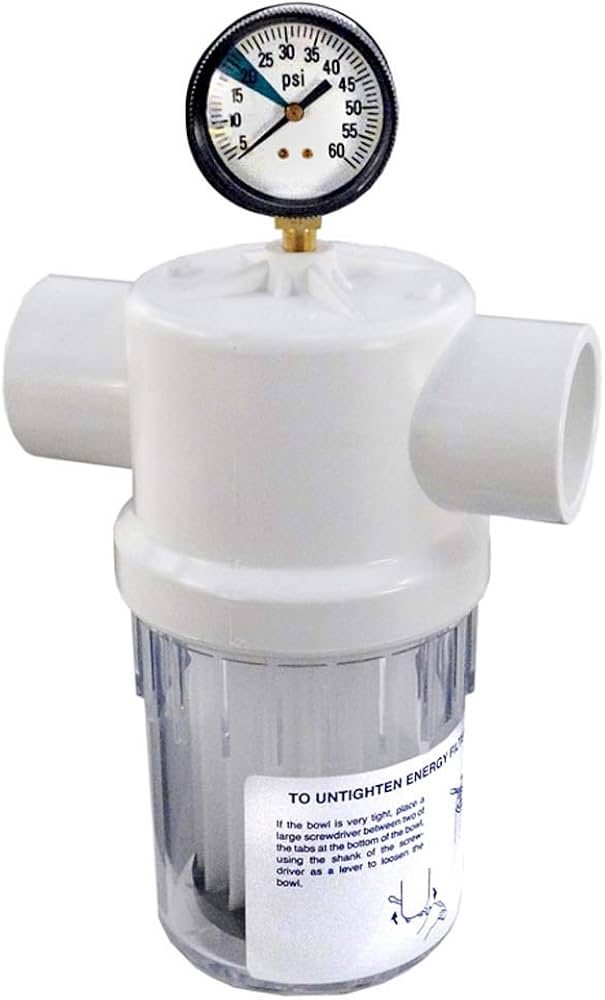

The genuine Jandy 2888 Energy Filter with Gauge is a full filtration assembly engineered for Jandy Ray-Vac Pro Series pressure-side pool cleaners that run without a separate booster pump. This all-in-one kit contains the upper and lower filter housings, a high-performance internal filter cartridge, an O-ring for a leak-proof seal, and an integrated pressure gauge for at-a-glance system monitoring. Accommodating both 1.5-inch and 2-inch plumbing connections, it adapts to a broad spectrum of pool plumbing layouts. Particularly well-suited for pools equipped with fountains, waterfalls, or other decorative water features that commonly introduce fine sand and debris, this unit safeguards your cleaner components and primary filter media from contamination. The built-in pressure gauge delivers real-time readings so you know exactly when service is needed, helping preserve water clarity and extend equipment life.

Key Benefits

• All-in-One Filtration Assembly: Ships with upper and lower housings, cartridge, O-ring, and pressure gauge for a fully integrated debris management solution
• Fits Two Plumbing Sizes: Works with both 1.5-inch and 2-inch pipe connections for versatile installation across diverse pool configurations
• Shields Cleaner Internals: Intercepts sand and particulates before they can reach delicate cleaning mechanisms or main filter media
• Perfect for Water Features: Especially effective in pools with fountains, waterfalls, and return jets where fine debris commonly enters the circulation path
• Built-In Pressure Monitoring: The integrated gauge delivers instant system pressure feedback, making it easy to determine optimal cleaning and service intervals

What's Included

• Filter Top
• Filter Bottom
• Filter/Cartridge
• O-Ring
• Gauge

Specifications

• Brand: Jandy
• Part Number: 2888

Installation & Operation Tips

Install the Energy Filter in the pool cleaner return line, positioned between the Jandy Valve and the pool. The ports on the Energy Filter are labeled IN and OUT. Connect the outlet port so it faces the pool RAY-VAC line. Prior to gluing, detach the clear bowl from the bottom of the filter. Once the adhesive is applied, wipe away any glue that may have dripped onto the filter top threads before reattaching the clear bowl.

After the Jandy Valve and Energy Filter plumbing is complete, thread the Pressure Gauge into the top of the Energy Filter. Apply teflon tape and hand tighten securely.
