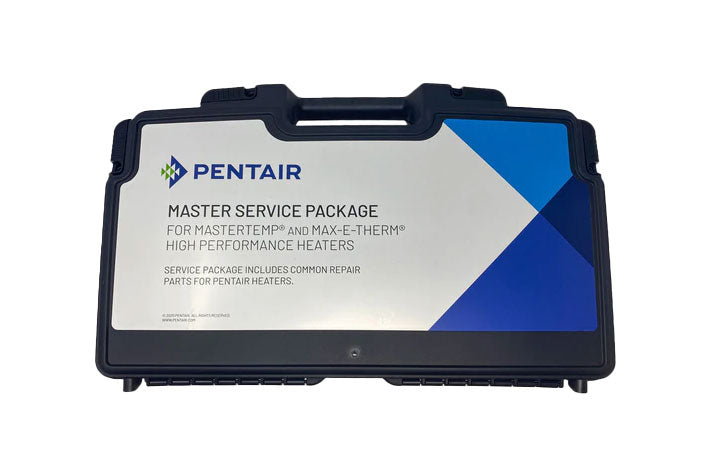

• Comprehensive OEM Kit: Designed for MasterTemp and Max-E-Therm heaters, this service package includes all critical parts needed for reliable maintenance.

• Key Heater Components: Contains a high-limit switch, stack flue sensor, thermistor, pressure switch, and automatic gas shut-off switch, all engineered for precise heater function.

• Resolves Common Issues: Ideal for addressing water flow problems, temperature regulation faults, or safety shutdown triggers, ensuring heaters run consistently.

• Restores Safe Operation: Each component is designed to OEM Pentair standards, helping restore heater efficiency while protecting against unsafe conditions.

• Maintenance Made Simple: Useful for technicians and skilled homeowners, the kit makes troubleshooting and repairs faster by providing all major wear parts together.

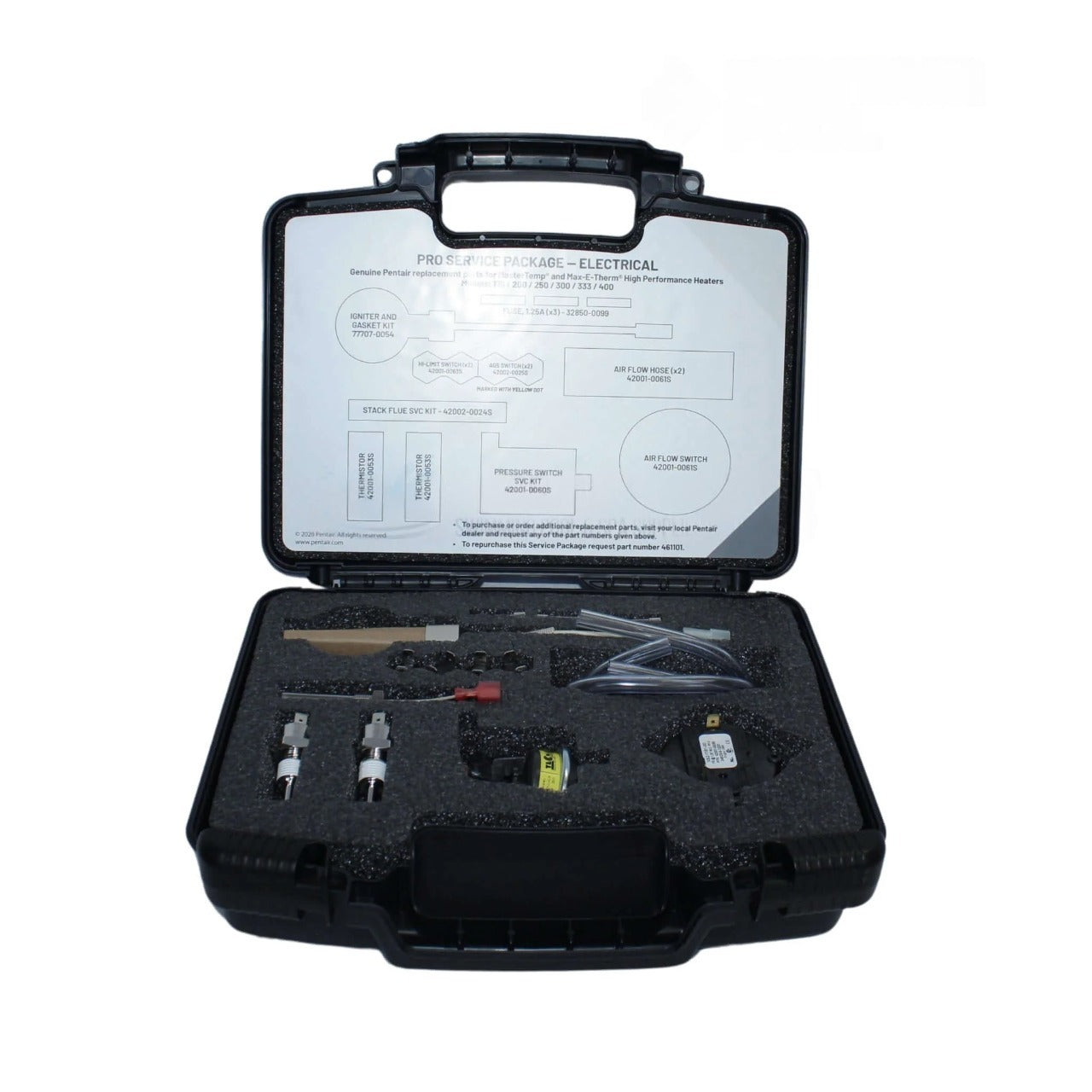

• (1) 77707 - 0054- Igniter and Gasket Kit
• (3) 32850 - 0099- Fuse 1.25AÊ
• (2) 42001 - 0063S- Hi-Limit Switch - The Pentair Sta-Rite High Limit Switch is an important switch in your Max-E-Therm or MasterTemp pool heater, and is used to detect when your water temperature has exceeded a safe level (135¡F) and immediately opens the heat exchanger outlet when that happens. Your MasterTemp heater will indicate when it is time to replace the High Limit Switch when the ÒHLSÓ LED is displayed.
• (2) 42002 - 0025S- AGS SwitchÊ - The Pentair Sta-Rite Gas Shutoff Switch is important in your Max-E-Therm or MasterTemp pool heater, and is used to detect when your heat exchanger outlet temperature has exceeded a safe level (140¡F) and the switch immediately opens when that happens. Your MasterTemp heater will indicate when it is time to replace the High Limit Switch when the ÒAGSÓ LED is displayed.
• (2) 42001 - 0061S- Air Flow Hose
• (1) 42001 - 0061S- Air Flow Switch
• (1) 42002 - 0024S- Stack Flue SVC Kit -ÊA stack flue sensor, located on the exhaust elbow of a pool heater, prevents the flue gas output from exceeding 500¡F. When this fails, your system will show error codes E05 or E06 to indicate that the stack flue sensor must be replaced.
• (2) 42001 - 0053S- Thermistor - Thermistors often display a temperature that is much too high when they reach the end of their lifespan. Fix this issue easily by replacing your worn-out thermistor temperature sensor with this Optimum replacement stainless steel thermistor.
• (1) 42001 - 0060S- Pressure Switch SVC KitÊ - The Pentair¨ Heater Pressure Switch is a safety mechanism designed to detect water flow in your heater using pressure.

Need help with the Pentair MasterTemp and Max-E-Therm Repair Kit 461101? This section answers questions about installation, common heater problems, and in-store availability for this service package.

Installing the 461101 Repair Kit

This kit includes key parts like the High Limit Switch, Thermistor, and Pressure Switch. Correct installation keeps your heater safe and reliable.

How do I install the Pentair 461101 repair kit in a MasterTemp heater?

Can I buy this complete service package in store for same-day repair?

Do I need a technician, or can I install the High Limit Switch myself?

Troubleshooting Heater Issues with the Kit

The 461101 kit addresses common heater failures such as water flow, overheating, and gas shutoff problems.

Will the 461101 kit fix error codes on a Max-E-Therm heater?

What should I do if the stack flue sensor keeps tripping in my heater?

Can I walk into the store and buy just the pressure switch from this kit?

Confirming the Correct Kit In Store

Ensuring you have the right service kit avoids wasted trips and downtime.

How do I confirm in store that 461101 is the right kit for my heater?

Is this repair kit available at Discount Pool Mart for immediate pickup?

Can I bring in my old part to match against the 461101 components locally?
