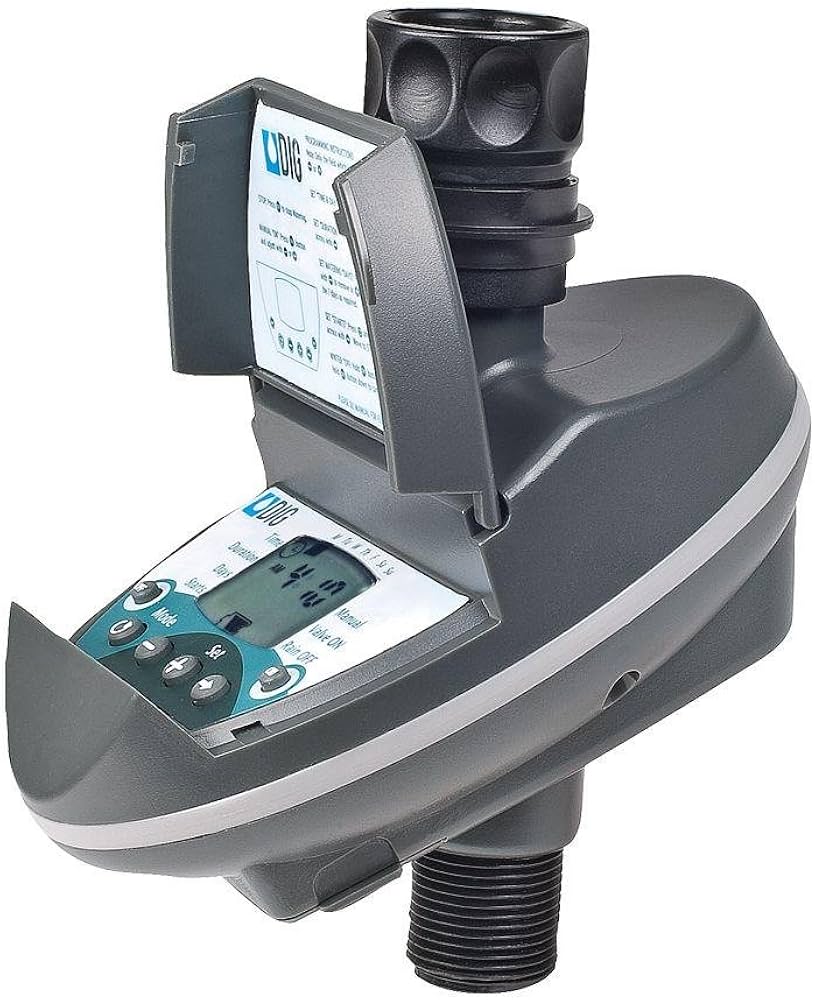

The DIG B09D 3/4" Digital Hose End Timer represents the latest generation of hose-mounted watering controllers, featuring streamlined programming and enhanced battery monitoring that draws less current for significantly longer battery life without sacrificing dependability. Capable of higher flow rates even at reduced inlet pressures, the B09D is a practical and affordable choice for homeowners. It supports four daily start times with run durations ranging from 1 minute to 12 hours 59 minutes, operating within a flow range of 0.5 to 6.3 gallons per minute. This makes it well suited for drip irrigation, micro sprinkler networks, and any setup connected to a standard garden hose or outdoor faucet. A single 9-volt alkaline battery powers the unit for over a year of reliable automated watering.

Key Benefits

• Simplified Programming: Quick and intuitive setup accommodates up to four daily start times with run durations from 1 minute to 12 hours 59 minutes, covering drip systems, micro sprinklers, and beyond.
• High Flow Rates at Low Pressures: Delivers between 0.5 and 6.3 gallons per minute, sustaining effective water distribution even when inlet pressure is below typical levels.
• Extended Battery Life: Runs on one 9-volt alkaline battery for over twelve months, enabled by intelligent power management and minimal standby current consumption.
• Cost-Effective Solution: Built for residential watering needs, this timer combines flexible scheduling with consistent performance, connecting easily to garden hoses, spigots, and faucets.

Key Features

• East to set
• Ideal for drip or sprinkler systems
• Attaches to any standard faucet for automatic watering
• 3/4 FHT inlet and MHT outlet
• Easy programming using six buttons and large LCD display
• AM/PM clock
• Watering duration from 1 minute to 12 hours 59 minutes in 1 minute intervals
• Seven day watering calendar
• Four start times per day
• Preset program of five minutes watering every day
• Electronic battery monitoring that provides constant reading of battery strength
• Five part battery strength indication: 4, 3, 2, 1 bar and then flashing one bar on close down
• Low battery auto lock out to ensure that the timer valve will not open unless it can close
• Low energy use (less than 20 micro amps in standby mode) ensures long battery life of up to one year with one 9V battery (not included)
• Easy manual operations using Start and Stop buttons.
• Rain mode easily accessed by holding the OFF key for three seconds
• High water flow at normal water pressures.
• Operates on low water flow of less than 0.5 GPM
• High strength female hose thread connection with easy removal via spring clip
• 3/4_ FHT inlet with screen and MHT outlet
• Powered by one 9-volt alkaline battery with a battery life up to one year
• Weather resistant
• Three-year limited warranty

What's Included

• Timer Cover
• Large LCD Screen
• 6 Button Programming
• Inlet 3/4" Female Hose Thread With Screen Filter Washer
• Outlet 3/4" Male Hose Thread

Specifications

• Brand: DIG
• Operating pressure 15 PSI to 80 PSI (1.03 - 5.5 Bar)
• Up to 4 start times per day
• Flow rate up to 6.3 gpm at 30 PSI (24 L/PM at 2 Bar)
• Temperature range: 40¡F to 125¡ F (3¡ C to 50¡ C)
• Power source: 9-volt alkaline battery (not included)
• Efficient internal DC solenoid
• Power consumption: 20 micro amps in standby mode
• Materials: body ABS, and inner parts of high-impact plastic
• Dimensions: 6 D X 4 W x 6.5 H ( 15.2 cm X 10.0 cm X 16.2 cm)
