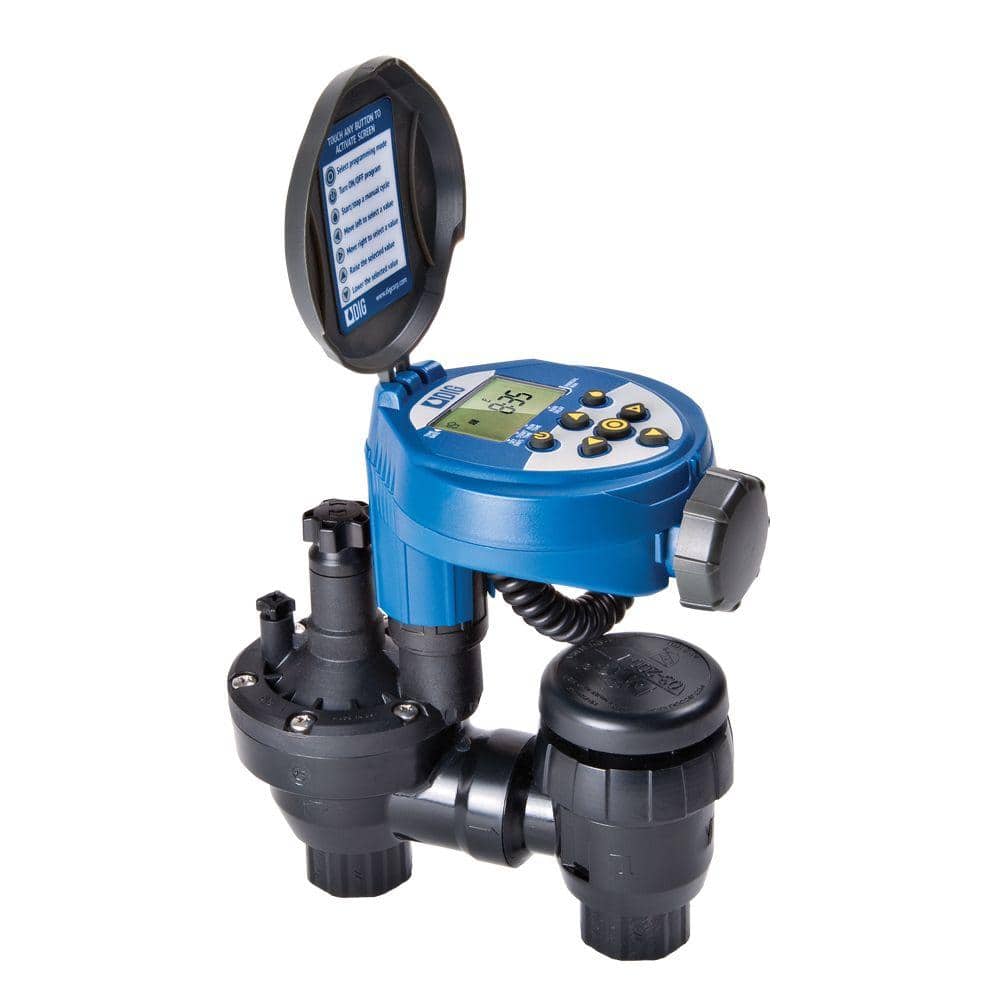

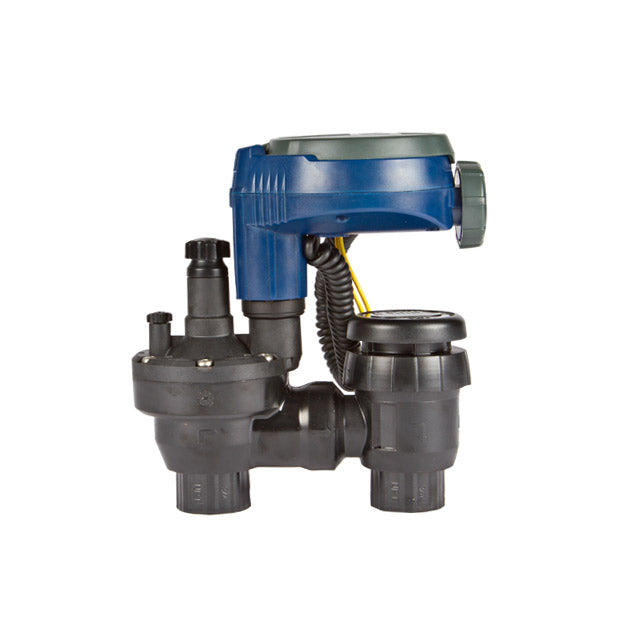

The DIG RBC8000 Single-Station Battery Operated Timer mounted on a 3/4" anti-siphon valve is a robust and versatile controller designed for residential, commercial, and remote-location irrigation systems where AC power is unavailable. Equipped with cutting-edge electronic power management, the RBC8000 delivers up to three years of operation from just two AA alkaline batteries. Its large, high-contrast LCD screen and icon-based menus make programming weekly or cyclical watering schedules completely intuitive. The heavy-duty professional-grade 3/4" anti-siphon valve features integrated flow control and an external manual bleed for smooth, reliable valve operation. Fully waterproof to IP68 standards and built to thrive in harsh outdoor environments, the RBC8000 provides a dependable, set-it-and-forget-it solution for any irrigation application.

Key Benefits

• Long Battery Life: Advanced electronic power management delivers up to three years of uninterrupted operation from two AA alkaline batteries, drastically reducing maintenance visits.
• Easy Programming and Operation: A high-contrast LCD display with intuitive icon-based navigation makes it simple to configure weekly or cyclical watering programs for any residential or commercial landscape.
• Heavy-Duty 3/4" Anti-Siphon Valve: The professional-grade valve incorporates integrated flow control and an external manual bleed screw, ensuring dependable operation and backflow prevention across all irrigation configurations.
• Waterproof and Durable: Rated IP68 for complete waterproof protection, this timer is engineered to function reliably in extreme weather, underground valve boxes, and other demanding outdoor settings.

Key Features

• Powered by two AA alkaline batteries with a safe period of 60 seconds to replace without losing the program
• Watering flexibility with a selection of watering frequencies and four start times
• Seven buttons with integrated high resolution screen
• Easy-to-read LCD display with AM/PM clock and icon-based programming for easy navigation
• Blinking notification on days the timer is active
• Programming time options in AM/PM or 24 hour
• Non-volatile memory retains program and timer integrity (excluding time)
• Emergency backup program of five minutes every 24 hours if no program is selected after battery installation, starting at 8:00 AM
• Manual irrigation cycle can be performed via the timer manual program button or via the solenoid
• One button for program off until reactivated or as an irrigation suspension override (rain mode)
• Energy conservation; after 15 minutes the timer screen is turned off automatically
• Low battery indicator
• Semi-automatic, automatic or manual operation
• Retractable coiled cord for easy removal of the timer
• Available with 3/4' NPT or BSP thread heavy duty, professional anti-siphon valve with manual flow control and external manual bleed supported by stainless steel screw
• Threaded battery cover with O-ring for waterproof protection of the batteries
• Latching solenoid with encapsulated plunger and spring for reliable operation
• Wire ready for a rain sensor
• The timer interior is completely waterproof (IP68) Ð can operate in harsh environments
• Environmentally friendly; utilizes RoHS compliant components
• Battery life up to three years

What's Included

• Controller Cover
• Quick Reference Label
• LCD Screen
• 7 Button Keypad
• Battery Compartment Cap
• Rain Sensor Connection
• Removable Timer with 36" Cable
• Anti-Siphon Cap
• Manual Flow Control
• External Bleed Screw
• 3/4" Pipe Thread Inlet
• 3/4" Pipe Threat Outlet

Specifications

• Brand: DIG
• Part Number: RBC8000
• Operating pressure: 20 to 125 PSI
• Flow range: .25 to 20 GPM
• Temperature range: 38-130¡F (3-54¡C)
• Meet the listed compliance: UPC Meet I.A.P.M.O. UPC and ANSI listing specifications Canadian Standards Association listing approved
• Meet I.A.P.M.O. UPC and ANSI listing specifications
• Canadian Standards Association listing approved
• Inlet and outlet: female pipe thread (FNPT) or British standard thread (BSP)
• Timer power source: two AA alkaline batteries (not included)
• Solenoid with enclosed plunger: Two-way magnetic latching, normally closed, 7-12 Volt DC with two wires
• Retractable solenoid wire: 4.1 (coiled length when extended, approximately 18")
• Valve: 3/4 FNPT heavy duty anti-siphon valve with flow control and external manual bleed
• Materials: Timer housing: high-impact plastic Anti-siphon bonnet and solenoid: glass reinforced nylon Anti-siphon housing: PVC
• Timer housing: high-impact plastic
• Anti-siphon bonnet and solenoid: glass reinforced nylon
• Anti-siphon housing: PVC
