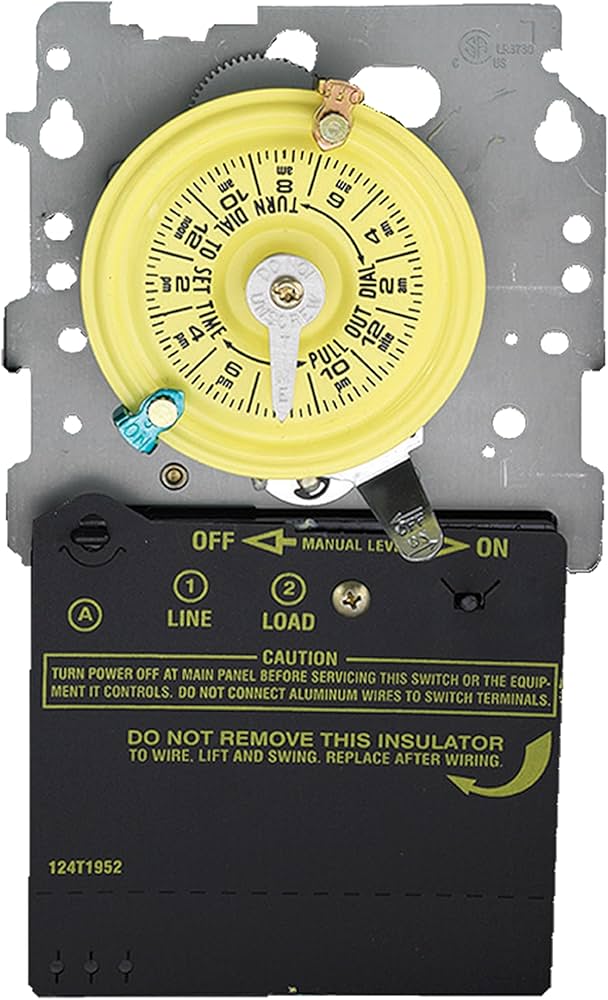

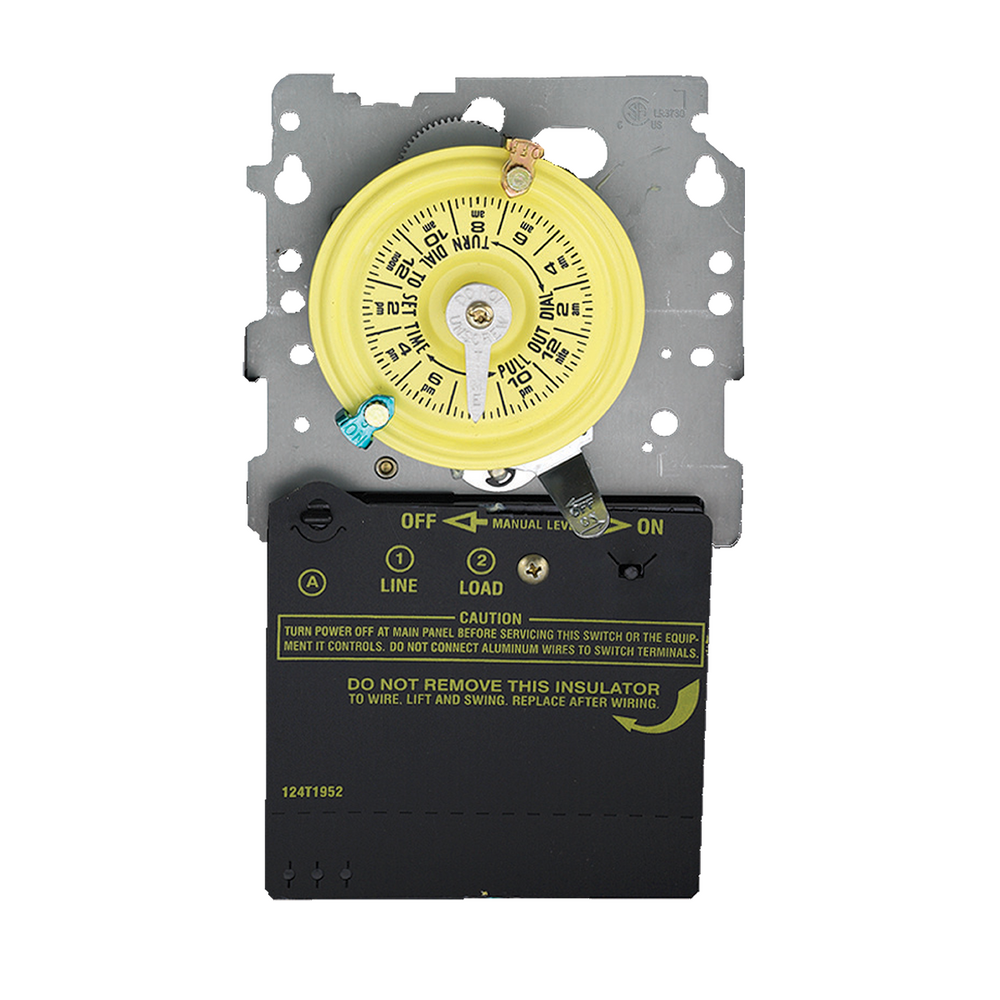

The Intermatic T101M is a rugged 24-hour mechanical time switch built to manage a single electrical circuit, widely used for interior lighting control, pool pump scheduling, and other equipment automation. This SPST (single pole, single throw) mechanism supports loads up to 40 amps and allows as many as 12 ON/OFF cycles daily with a minimum one-hour interval between switches. Supplied with one ON and one OFF tripper, it fits into most Intermatic enclosures for versatile mounting options. Operating at 120 VAC, 60 Hz, the T101M is recognized for its exceptional motor load capacity, making it well-suited for residential homes, commercial facilities, and industrial installations alike.

Key Benefits

• Designed for Single Electrical Loads: The Intermatic T101M delivers dependable 24-hour mechanical timing for single-circuit applications including interior lighting, pool pumps, and auxiliary equipment.
• Single Pole, Single Throw (SPST) Configuration: Rated at 40 amps, this switch provides sturdy control with up to 12 daily ON/OFF transitions and a minimum one-hour gap between cycles.
• Operates at 120 VAC: Running on 120 volts at 60 Hz, the T101M integrates smoothly into standard electrical installations across residential, commercial, and industrial settings.
• Includes ON/OFF Trippers: Ships with one ON tripper and one OFF tripper for straightforward scheduling setup, enabling precise daily timing of connected equipment.
• High Motor Load Ratings: Constructed for heavy-duty service, the T101M excels at switching high-draw motor loads, making it a trusted choice for pool pump and lighting system automation.

Specifications

• Brand: Intermatic
• Part Number: T101M
