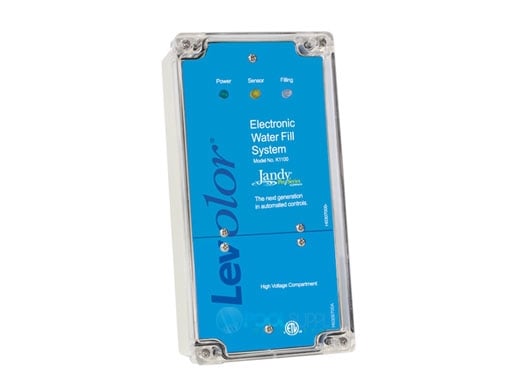

Keep your pool, spa, or water feature at the perfect water level with the Jandy Levolor K1100CKC, an automatic water leveling system that senses low-water conditions and replenishes to your desired set point. Equipped with a 100' sensor cable and 1" solenoid valve, this unit relies on precision electronic monitoring rather than mechanical parts—eliminating the risk of rust, jamming, or component wear. Built-in wave compensation prevents false readings from surface turbulence, while a proprietary lock-out mechanism guards against overfilling. Equally suited for new construction and retrofit projects, the Levolor provides hands-free water management you can count on.

Key Benefits

• Hands-Free Water Management: Identifies low-water situations and triggers automatic replenishment to a user-defined level, cutting down on manual upkeep and safeguarding pool equipment.
• Precision Electronic Sensing: Employs high-accuracy electronics for reliable level control, with built-in wave compensation that eliminates erroneous fill cycles from surface agitation.
• Overfill Prevention System: An integrated lock-out safety feature stops the fill process before overflow occurs, conserving water and protecting surrounding areas.
• No Moving Parts to Fail: The fully electronic design removes mechanical components entirely, delivering trouble-free longevity in demanding pool and spa environments.
• Versatile Installation Options: Works with both new-build and existing setups, bundled with a 100' sensor cable and 1" solenoid valve to accommodate diverse plumbing configurations.

Specifications

• Brand: Jandy
• Part Number: K1100CKC
• Pool/Spa Application(s): in-ground and above-ground
• Retrofit: Yes
• Input Current: 110/220 VAC, 50/60 HZ, 0.5 AMPS
• Output: 24 VAC @ 1 AMP
• Maximum Working Pressure: 125 PSI
• Sensor Lead: 100 ft.
• Sensor Style: Dual Style
• Solenoid Valve: 1"
• Bodies of Water: Single body
• Application: Pool or spa
