Mounted directly to the combustion chamber wall, this manifold assembly functions as the central junction point for all water inlet and outlet connections. It integrates several vital operational components within a single unit, including the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve.

Key Benefits

• Central Water Distribution Point: Provides a unified connection point for both incoming and outgoing water lines, promoting consistent and uninterrupted water flow throughout the heating system.
• Multi-Function Design: Consolidates critical features such as the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve into one integrated assembly.
• Elevated System Performance: Directly contributes to improved heating efficiency by managing and monitoring essential operating parameters within the heater.
• Reliable Mounting: Fastens firmly to the combustion chamber with bolts, delivering structural integrity and straightforward access for service and inspection tasks.
• Built-In Safety Protection: Features multiple protective switches and pressure-relief mechanisms that safeguard against dangerous overpressure conditions and excessive temperature buildup.

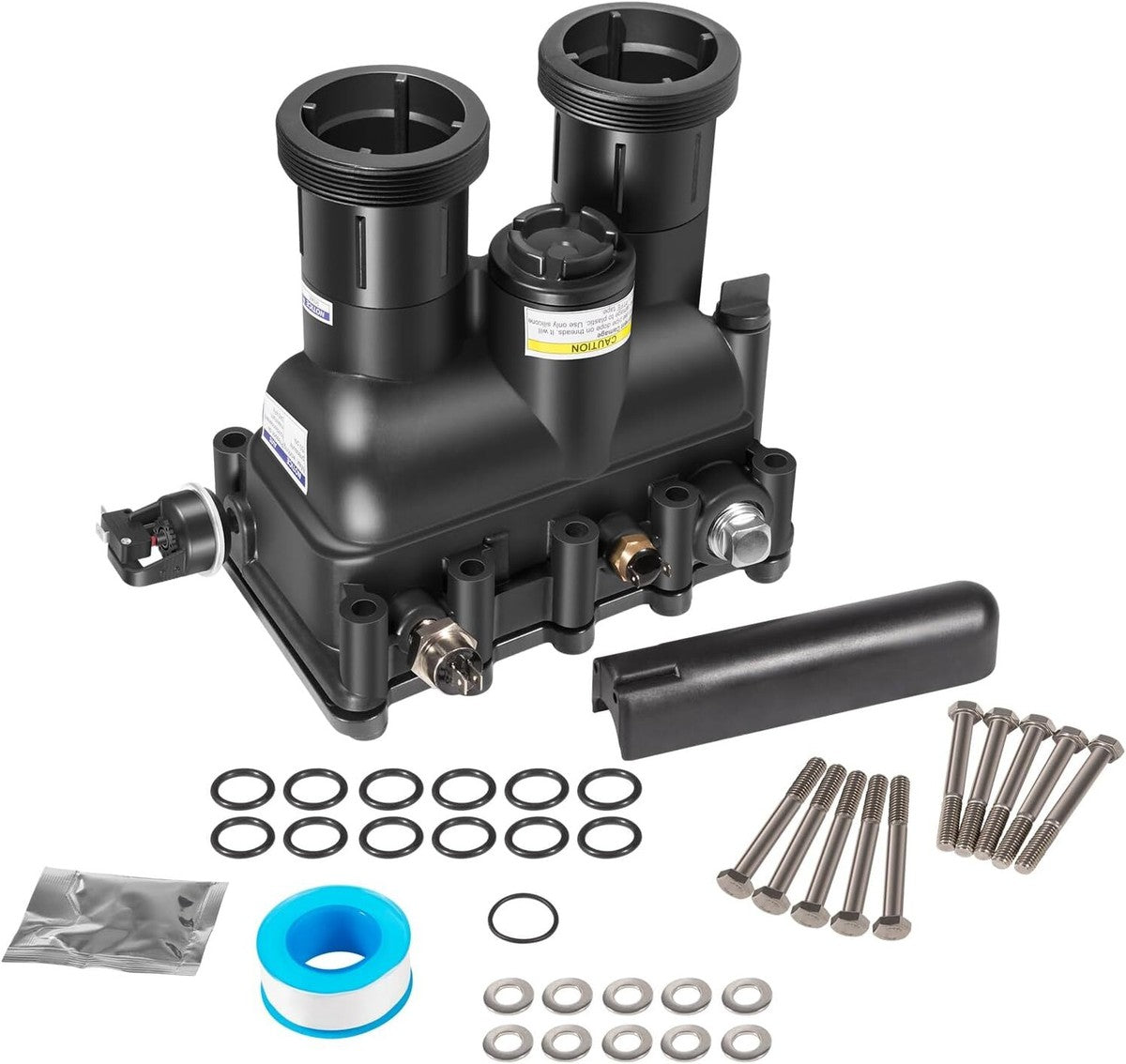

What's Included

• Pentair Manifold Kit
• Pentair Small Lube and Sealant PackageÊ
• Pentair Water Pressure Switch
• Screw
• Pentair Tube Sheet Coil O-Rings
• Bolts
• Washers

Compatibility

• Pentair MasterTemp Heaters Models: 250NA, and 250LP
• Pentair Sta-Rite Max-E-Therm Heater Model: 250

Specifications

• Brand: Pentair
• Part Number: 460748
