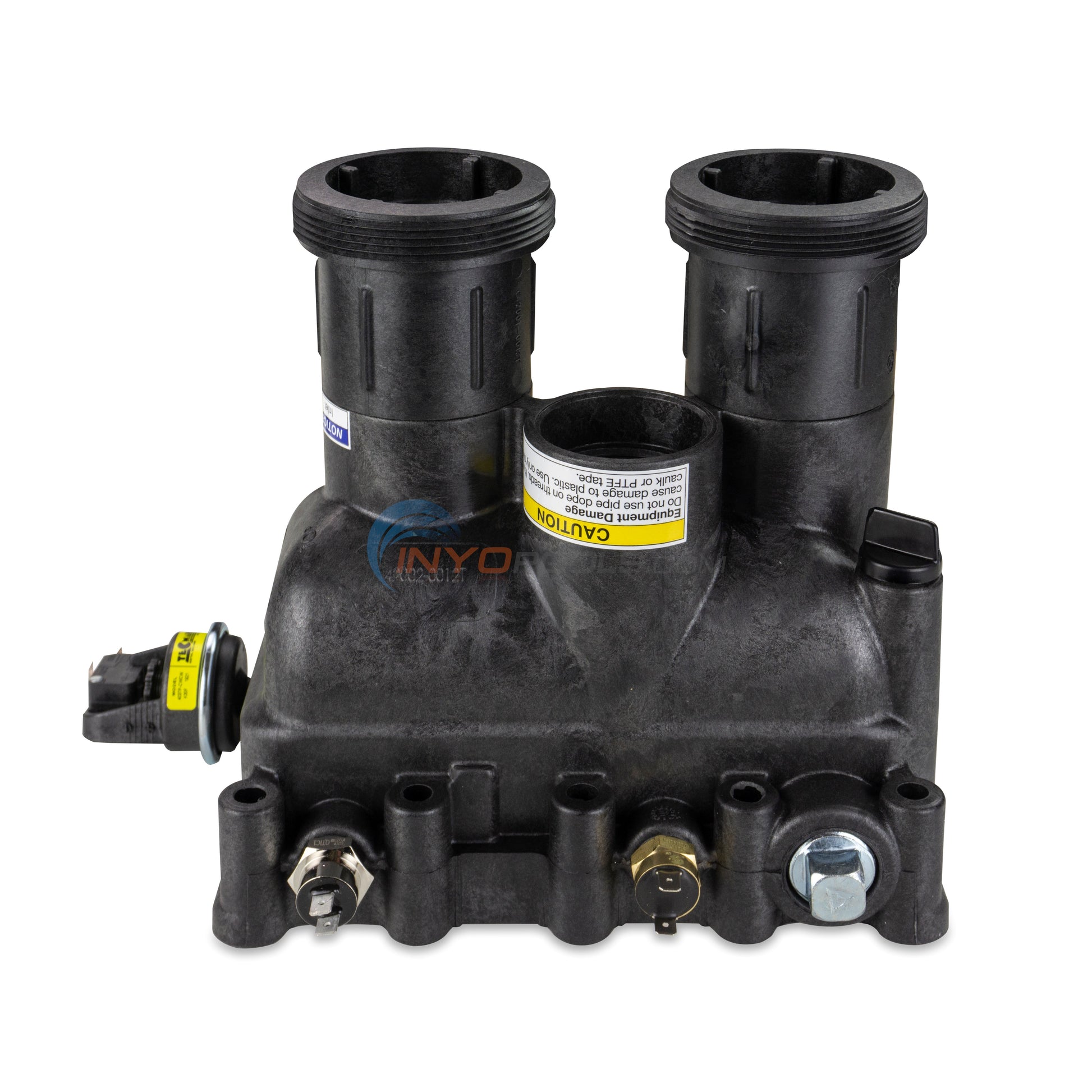

Anchored securely to the combustion chamber exterior, this manifold assembly serves as the primary connection point for water entering and leaving the heater. It contains multiple performance-critical components, including the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve.

Key Benefits

• Primary Water Routing Hub: Operates as the main connection interface for inlet and outlet water lines, supporting steady and efficient water movement through the heating system.
• All-in-One Component Housing: Brings together essential parts like the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve into a single manageable assembly for thorough system control.
• Boosts Operational Efficiency: Serves a central role in optimizing combustion chamber performance by actively managing key heating parameters.
• Dependable Installation: Bolts directly onto the combustion chamber for a solid, vibration-resistant mount that keeps components accessible for routine service.
• Comprehensive Safety Integration: Features essential protective devices, including the hi-limit switch and psi relief valve, that guard against overpressure events and excessive heat conditions during operation.

What's Included

• Pentair Manifold Kit
• Pentair Small Lube and Sealant PackageÊ
• Pentair Water Pressure Switch
• Screw
• Pentair Tube Sheet Coil O-Rings
• Bolts
• Washers

Compatibility

• Pentair MasterTemp Heaters Models: 175NA, 175LP, 200NA, and 200LP1
• Pentair Sta-Rite Max-E-Therm Heater Model: 200

Specifications

• Brand: Pentair
• Part Number: 77707-0015
