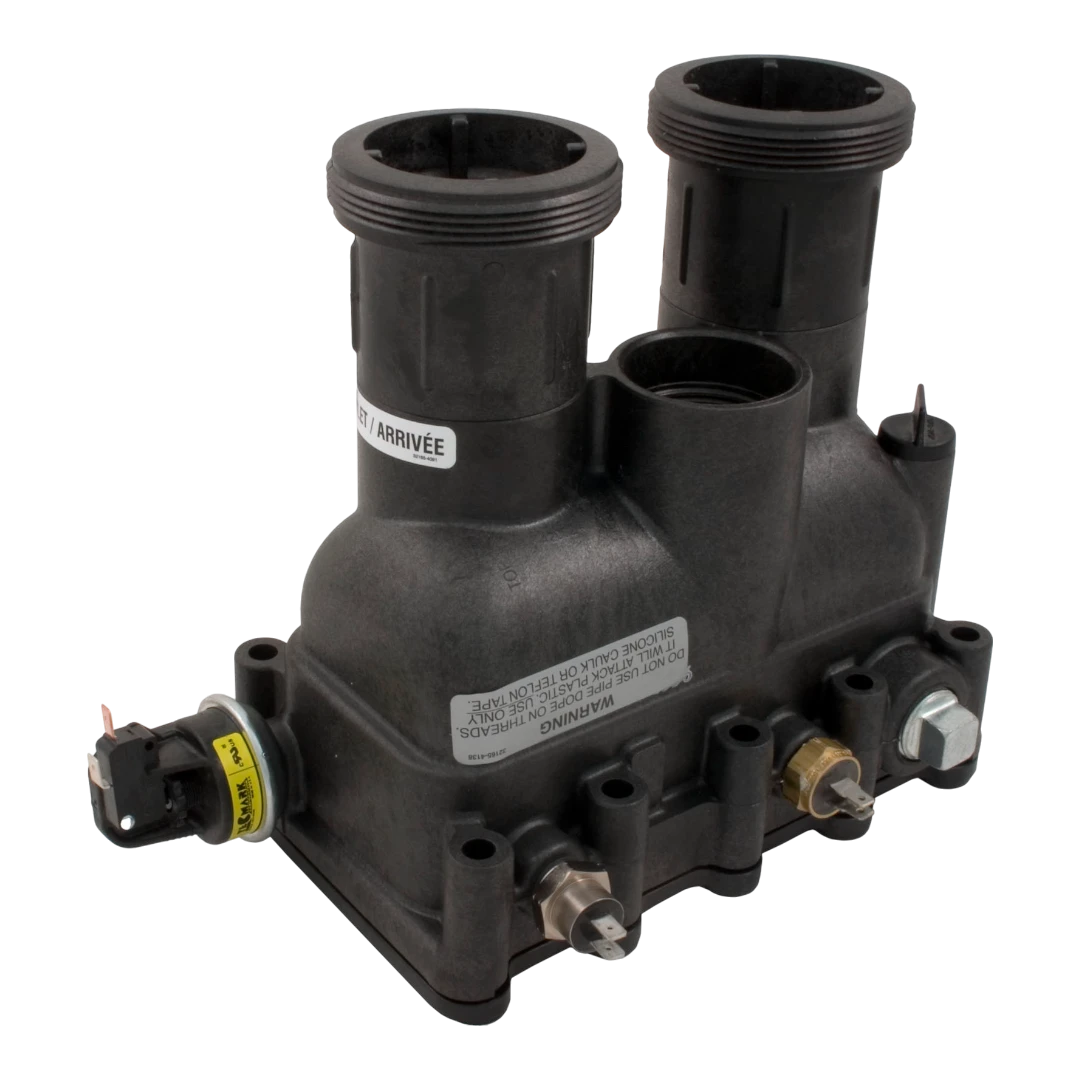

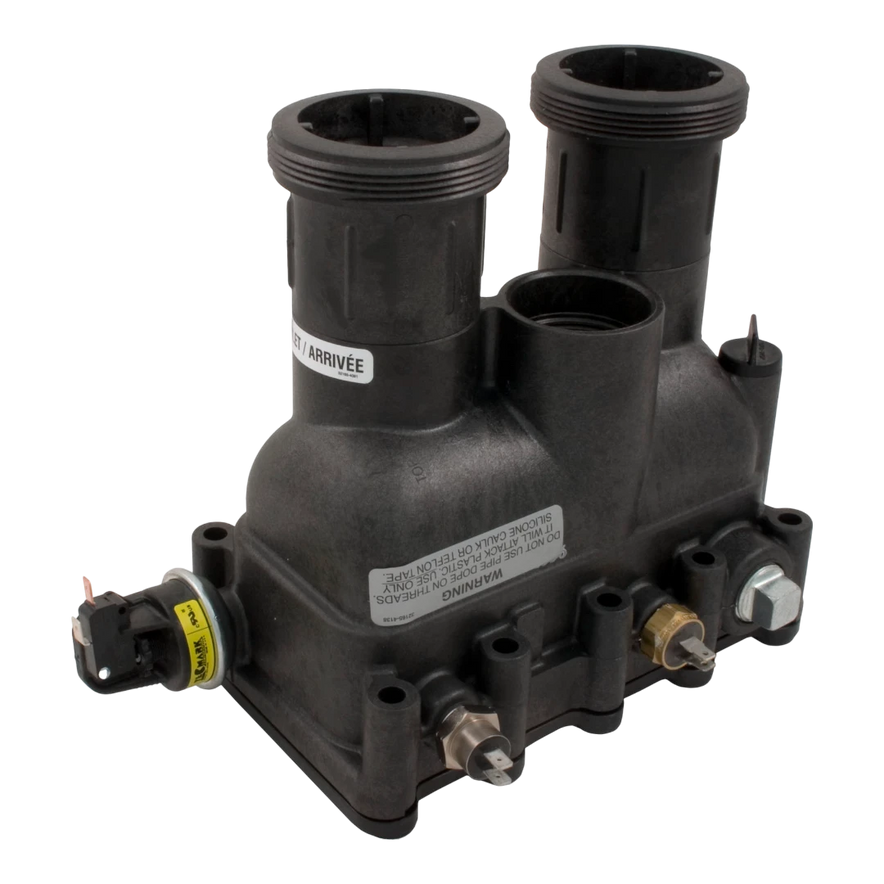

Secured to the side of the combustion chamber by bolts, this manifold assembly acts as the main distribution point for all water intake and discharge connections. It consolidates numerous essential components into a single unit, including the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve.

Key Benefits

• Centralized Water Management: Functions as the primary junction for both water intake and discharge, delivering dependable and consistent water circulation.
• Unified Component Assembly: Integrates key operational parts such as the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve into one compact module.
• Maximizes Heating Performance: Plays a direct role in elevating combustion chamber output by governing and fine-tuning essential operational variables.
• Solid and Serviceable Mount: Bolts firmly to the combustion chamber sidewall, providing a stable platform that remains readily accessible for maintenance and visual inspection.
• Advanced Safety Mechanisms: Incorporates dedicated safety switches and pressure valves, including the psi relief valve and hi-limit switch, to prevent overheating and pressure-related hazards during operation.

What's Included

• Pentair Manifold Kit
• Pentair Small Lube and Sealant Package
• Pentair Water Pressure Switch
• Screw
• Pentair Tube Sheet Coil O-Rings
• Bolts
• Washers

Compatibility

• Pentair MasterTemp Heaters Models: 400NA and 400LP
• Pentair Sta-Rite Max-E-Therm Heater Model: 400

Specifications

• Brand: Pentair
• Part Number: 77707-0016
