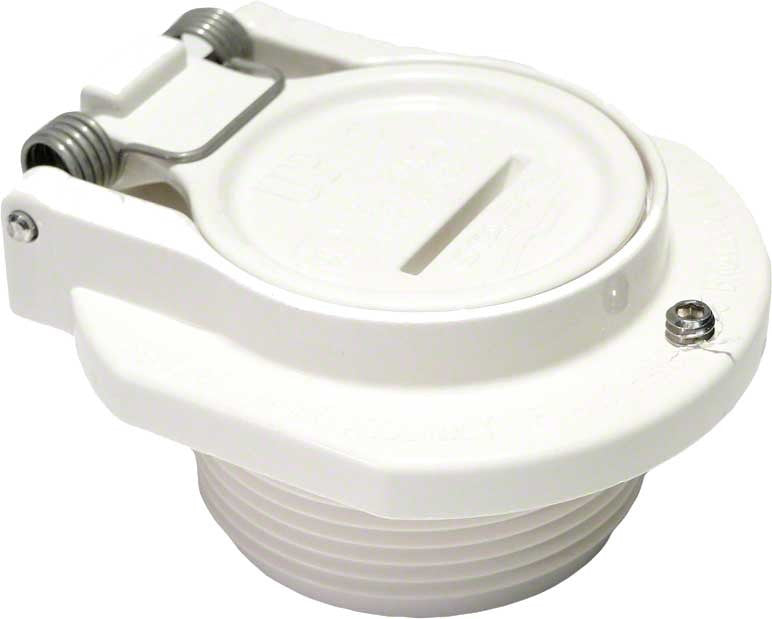

The genuine OEM Pentair Snap Lock Wall Fitting K12500 provides a rock-solid link between your Kreepy Krauly Kruiser pool cleaner and the pool's dedicated vacuum port. Engineered for a firm, airtight attachment, this fitting maximizes suction strength so your cleaner can deliver thorough debris removal across every surface. Manufactured from premium-grade materials built to resist pool chemicals and prolonged water exposure, this factory-original component sustains dependable cleaning power season after season.

Key Benefits

• Rock-Solid Attachment: Engineered to lock your pool cleaner into the vacuum port with a firm, airtight grip that maximizes suction efficiency.
• Premium Material Construction: Fabricated from high-grade materials that stand up to constant chemical and water exposure for years of dependable service.
• Maximized Cleaning Power: Maintains strong, consistent suction between the cleaner and the pool's vacuum system, keeping debris removal at its most effective.
• Factory-Original Component: Guarantees exact dimensional compatibility with Kreepy Krauly Kruiser cleaners for hassle-free replacement and consistent operation.
• Foundational to Pool Maintenance: Serves as the vital connection point that keeps your entire cleaning system functioning at full capacity, supporting a spotless pool environment.

Compatibility

• Pentair Kreepy Krauly Kruiser Cleaners

Specifications

• Brand: Pentair
• Part Number: K12500

Installation & Operation Tips

Installation1. Thread the fitting into a 1-1/2" NPT suction port in the pool wall. Make sure that you end with the cover spring as close to 12 o'clock as possible .NOTE: This fitting is designed for a threaded pipe connection only. Do not attempt to bond the fitting in place.2. When the fitting is tight and the spring in the 12 o'clock position, tighten the set screw to hold it in place.3. Open the door with a key or coin. Insert the hose so that the grooves in the hose interlock with the tab on the vac-port door . This will prevent the hose from squirting out of the fitting when the pump is stopped.

NOTE the following:

¥ Only open the door when the pump/filter system is off. A key or coin is required. You will not be able to open the door when the pump/filter system is operating.¥ The pump may cavitate (causing damage to the pump) if the hose is removed and the vac-port is allowed to shut with no other suction sources open. Do not remove the hose from the vac-port unless another source of suction is open.It is good practice to remove the vac-port and plug the open port in the pool wall when closing the pool for the season.¥ This fitting is NSF Listed to the IAPMO 4-99A Special UseSuction Fitting Standard
