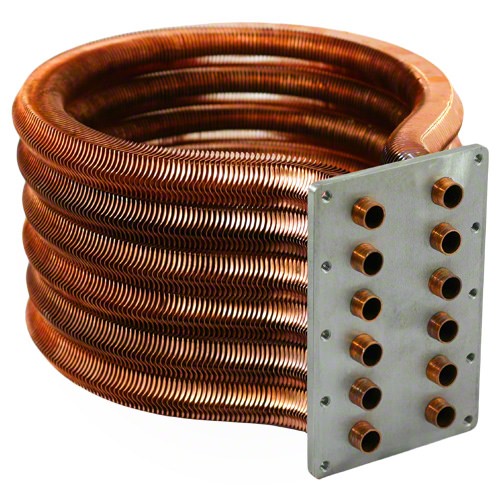

The Pentair Tube Sheet Coil Assembly, model 474061, is designed for use with MasterTemp and Max-E-Therm 400 heaters. This essential component facilitates highly efficient heat transfer, ensuring your pool or spa maintains optimal water temperature. Built from robust and durable materials, it promises long-lasting performance and reliability. Easy to install, the coil assembly is key to keeping your heating system functioning smoothly and effectively.

• Designed for 400 Heaters:ÊSpecifically created for use with MasterTemp and Max-E-Therm 400 heaters, ensuring precise compatibility and optimal performance.
• Highly Efficient Heat Transfer:ÊFacilitates highly efficient heat transfer, helping to maintain optimal water temperatures in your pool or spa.
• Robust and Durable:ÊBuilt from robust and durable materials, promising long-lasting performance and dependable reliability.
• Easy Installation:ÊDesigned for straightforward installation, making it a convenient and essential component for your heating system.
• Key for Smooth Operation:ÊEssential for keeping your heating system functioning smoothly and effectively, ensuring consistent and efficient performance.

• (1) Pentair Tube Sheet Coil
• (1) Pentair 77707-0011 Blower Adapter Plate Gasket Kit
• (1) Pentair 77707-0054 Igniter and Gasket Kit
• (1) Pentair 77707-0001 Manifold Bypass Valve
• (1) Pentair 474952 Combustion Chamber Gasket Kit (9 nuts and 9 washers)
• (1) Pentair 474201 RTV Silicone and Combustion Chamber O-Ring Kit
• (1) Pentair 77707-0008 Insulation Kit
• (6) O-Rings

• Pentair MasterTemp Heaters Models: 400NA, 400LP
• Pentair Sta-Rite Max-E-Therm Heater Model: 400

Note: This tube coil may be compatible with your heater, please refer to your systems owners manual to ensure compatibility.
