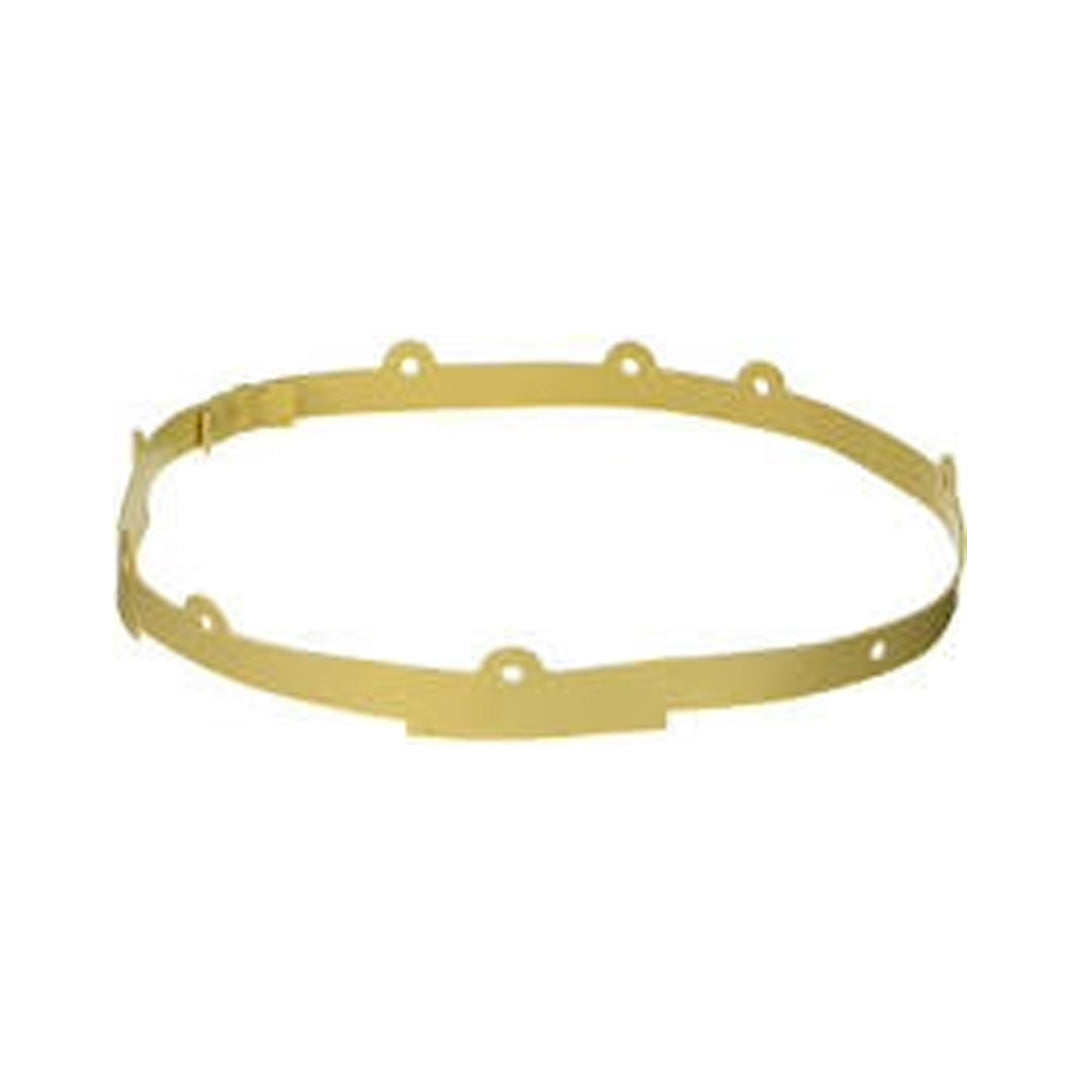

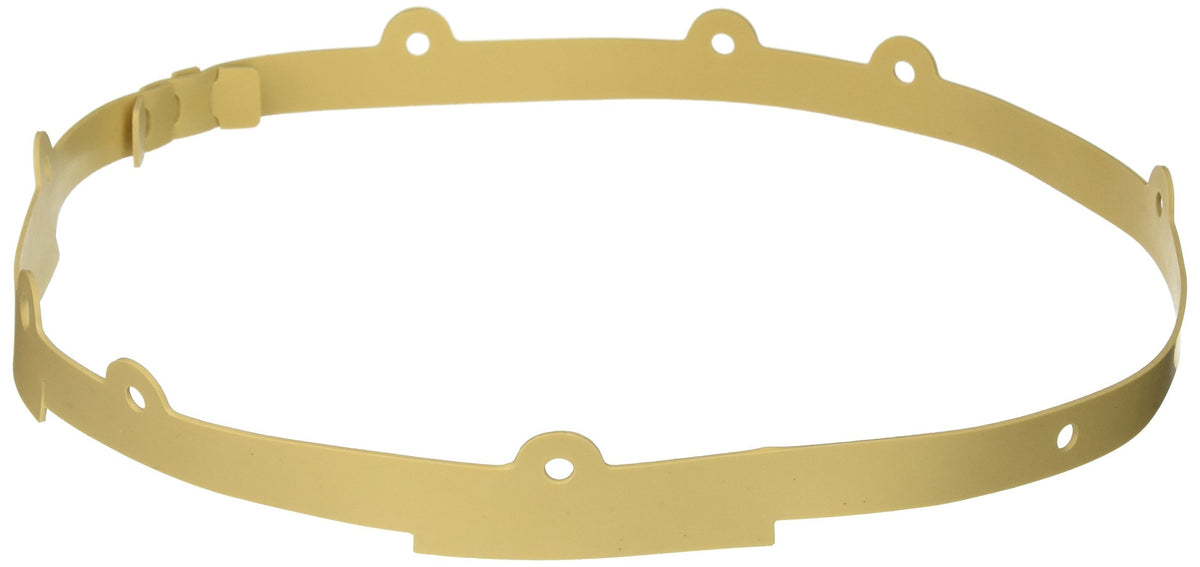

Restore your pool cleaner's grip and cleaning power with the genuine Pentair Vacuum Skirt, part number GW9508. Engineered specifically for the Kreepy Krauly Great White and Dorado automatic cleaners, this factory-original skirt wraps around the cleaner's lower housing to deliver consistent suction and surface contact. It works hand-in-hand with the brush ring assembly, holding the unit firmly against the pool floor while the brushes loosen algae and sediment. Constructed from heavy-duty rubberized plastic, this skirt also shields the cleaner's underside from abrasive surfaces and premature wear. Replacing a worn skirt is one of the most effective ways to bring your cleaner back to like-new performance.

Key Benefits

• Restores Surface Grip: Keeps the cleaner firmly planted against the pool floor and walls, ensuring thorough suction coverage during every cleaning cycle.
• Partners with Brush Assembly: Provides structural support that lets the brush ring agitate and remove algae and debris more effectively.
• Shields Lower Components: Functions as a protective barrier for the cleaner's undercarriage, guarding against scrapes and wear from rough pool surfaces.
• Heavy-Duty Rubberized Plastic: Built from tough, flexible material that resists tearing and degradation in chlorinated or salt water environments.
• Simple Snap-On Replacement: Secures to the cleaner's integrated mounting tabs for a tool-free swap that gets your cleaner back in the water fast.

What's Included

• Pentair GW9508 Vacuum Skirt

Compatibility

• Pentair Cleaner Models: Great White and Dorado

Specifications

• Brand: Pentair
• Part Number: GW9508

Installation & Operation Tips

1. Put both white seals in the oscillator; hold them in place. 2. Install the oscillator on the long gear shaft. Install the ratchet gear on the shaft so that the teeth engage the ratchet on the oscillator. Install the spring, ratchet drum, pinion gear (large gear first), and cam (gear end first) on the shaft (See Figure 19). Hold the gears on the shaft while installing them, and compress the clutch spring to allow assembly to slip into place between the posts (See Figure 19). 3. Install the long gear shaft and end blocks in the cleaning head with the large arm of the cam down (see Figure 20). 4. Reinstall the short gear shaft and two gears (See Figure 21); the small pinion gears and the shaft pin go on the side toward the end of the cleaneraway from the oscillator box. Make sure that the gears engage the gears on the long gear shaft. 5. Install the oscillator chamber cap and clip it in place. 6. Install the rubber vacuum skirt on the cleaner with the word OUTSIDE showing. Start at the large pin on the back of the cleaner head (see Figure 22) and work around the cleaner. Make sure the skirt is flush against the stop strips on the cleaner head (see Figure 23). 7. Turn the cleaner over. If you removed the bumper and brush ring, replace them now. 8. Install the lower body assembly in the shroud. Fasten the cleaning head in place with 4 screws (2 long, 2 short Ð see Figure 24). NOTE: Make sure that you do not dislodge the rubber vac skirt while inserting the lower body assembly past the brush ring
