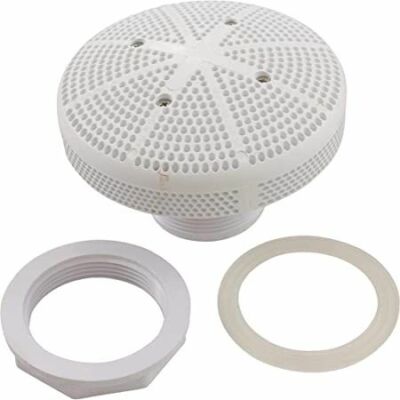

The CMP Fiberglass Pool Spa Suction Main Drain 25215-000-000 is a durable and reliable main drain cover designed for efficient water circulation in fiberglass pools and spas. With a flow rate capacity of up to 175 GPM, this suction drain ensures optimal water filtration and prevents debris from clogging your system. The 6-inch face diameter and 2-inch slip style make it compatible with most pool and spa setups, and the white plastic construction offers long-lasting durability. Easy to install, this main drain is a crucial component for maintaining a clean and well-functioning pool or spa.

WARNING: When using two or more suction Þttings on a common suction line, suctions must be separated by a minimum of 3 ft or they must be located on two different planes (i.e., one on ßoor and one on the wall).
WARNING: Do NOT locate suction outlets on seating areas or on backrests for such seating areas.

• Efficient Water Circulation: The CMP Fiberglass Pool Spa Suction Main Drain 25215-000-000 ensures optimal water flow with a capacity of up to 175 GPM, improving filtration and preventing debris from clogging your system.

• Durable Construction: Made from high-quality white plastic, this 6-inch face diameter main drain is built for long-lasting durability, ensuring reliable performance in fiberglass pools and spas.

• Compatible Design: Featuring a 2-inch slip style connection, this main drain is compatible with most pool and spa setups, making it a versatile and essential component for maintaining proper water circulation.

• Easy Installation: Simple to install, the CMP Main Drain is a crucial part of keeping your pool or spa clean and functioning efficiently, supporting a healthy water environment.

• (1)ÊCMP 25215-000-000 Drain Cover

1. Using hole saw, cut/drill the installation hole.
2. If optional gasket is used, gasket must be placed How (GPM) around threads of suction wall Þtting at this time.
3. Place threads of wall Þtting through hole from the inside (water side) of tub/pool.
4. Install nut from dry side of tub onto the threads of the wall Þtting.
5. Using torque wrench, torque nut to <44.0 ft. lbs. (60Nm)
6. Verify that the suction cover is properly tightened and secured with stainless steel screw.

NOTE: The maximum ßow rating for this suction Þtting is 175 GPM. This suction Þtting is designed for installation on side wall or ßoor of portable spas, hot tubs, or pools in conjunction with at least one other suction Þtting per pump. DO NOT adapt suction Þtting to any pipe size smaller than ASTM 2" SCH 40 PVC. Suction Þtting and fasteners should be observed for damage or tampering before each use. Missing, broken, or cracked suction Þttings shall be replaced before use. Loose suction Þttings shall be reattached or replaced before use. Mount suction Þttings on the walls, in the foot wells of portable spas,,hot tubs, or pools. Do not mount directly under seats. Follow all winterizing
instructions and recommendations of your pool and spa professional. Open area of the suction cover is 12.88 sq. in.

NOTE: If silicone is used on Þtting, verify that silicone is compatible with ABS and PVC plastics.

CAUTION: DO NOT over-torque Þtting. Excessive torque can cause premature failure of threads or damage to suction Þtting increasing risk of entrapment.

NOTE: In the event that one suction outlet is completely blocked, the remaining suction out|et(s) serving that system MUST have a ßow rating capable of the full ßow of the pump(s) for the speciÞc suction system.

NOTE: Increasing size of the pump may increase ßow rate of suction beyond rated safety limits causing entrapment or death.

CAUTION: Hair or body parts blocking the spa or pool suctions may become trapped and held against the suction Þtting. Entrapment against the suction Þttings can result in drowning or other severe injury. Never sit on or lean up against suction Þttings. Never exceed

the maximum allowable ßow rate stated on the suction Þtting. The suction Þtting and fasteners should be inspected for damage or tampering before each use of the facility. Missing, broken, or cracked suction Þttings shall be replaced before using this facility. Loose suction Þttings shall be reattached or replaced before use of this facility.
