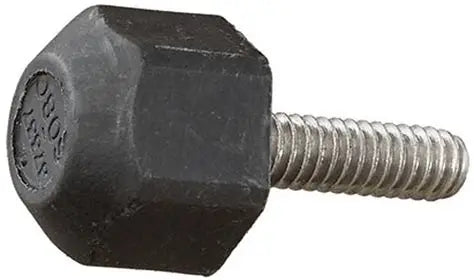

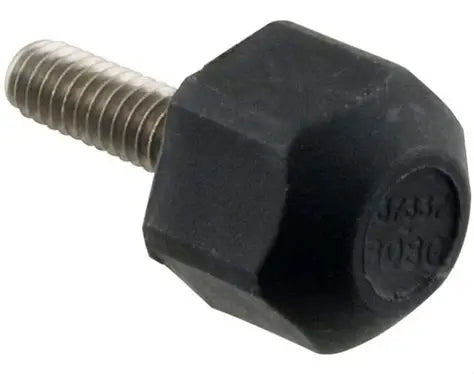

The Pentair 37337-6080 impeller lock screw is a factory-original fastener engineered exclusively for WhisperfloXF and IntellifloXF pump platforms. This precision-machined screw anchors the impeller firmly onto the motor shaft, preventing rotational slippage and guaranteeing consistent hydraulic output. Fabricated from corrosion-resistant, industrial-grade materials, it thrives in the harsh chemical and moisture conditions found in pool equipment environments. Replacing a worn lock screw with this genuine Pentair part restores your pump to factory-spec operation.

Key Benefits

• Positive Impeller Retention: Engineered for WhisperfloXF and IntellifloXF pump lines, this screw locks the impeller securely to the shaft and eliminates unwanted movement.
• Consistent Hydraulic Output: By holding the impeller in its correct position, the lock screw ensures your pump delivers steady, uninterrupted water flow at designed pressures.
• Corrosion-Resistant Build: Manufactured from premium-grade materials that resist chemical exposure and moisture degradation for dependable long-term service.
• Harsh-Environment Durability: Engineered to perform reliably under the demanding conditions typical of pool and spa mechanical systems.
• Factory-Spec Restoration: A genuine OEM replacement that returns your pump to original operating condition, supporting the overall health and efficiency of your entire circulation system.

What's Included

• Pentair 37337-6080 Impeller Lock Screw

Compatibility

• Pentair Whisperflo XF VSF Pumps
• Pentair Intelliflo XF VSF Pumps
• Pentair IntellifloXF VSF Pumps
• Pentair IntellifloXF VS Pumps
• Pentair IntelliPro XF VSF Pumps
• Sta-Rite IntelliPro Variable Speed Pumps
• Sta-Rite Max-E-ProXF Pumps
• Sta-Rite Max-E-Glas II / Dura-Glas II Pumps
• Sta-Rite Dyna-Glas / Dyna-Max Pumps
• Sta-Rite Max-E-Pro Pumps
• Sta-Rite Dyna-Pro / Dyna-Pro E Pumps
• Sta-Rite Dyna-Jet Pumps

Specifications

• Brand: Pentair
• Part Number: 37337-6080

Installation & Operation Tips

• Slide the spring end of the mechanical seal onto the impeller shaft, making sure the black/carbon face points outward.
• Reattach the seal plate to the motor using four (4) lock washers and four (4) nuts.
• Position the white ceramic face outward, then press the seal into the seal plate using your thumbs. Wipe the ceramic surface clean with a lint-free cloth. Do not apply lubricant to the seal faces.
• Thread the impeller onto the motor shaft by hand until snug.
• Insert the impeller reverse lock screw and turn counter-clockwise to tighten it into place.
• Reattach the rear plastic cover on the back of the motor housing.
• Reinstall the diffuser onto the seal plate, verifying that the plastic alignment pins and holding screw inserts line up correctly (refer to the TOP indicator marking).
• Join the motor subassembly to the pump housing. Leave all nuts and washers finger-tight until all four (4) motor bolts are seated. Then, using a torque wrench, tighten each nut to 100 in-lbs (maximum). Avoid over-torquing.
• Fill the pump housing with water before startup.
• Replace the pump lid and secure the locking ring; consult the Maintenance section on page 5 for details.
• Reprime the system following the priming procedure outlined on page 4.
